RAM Locking GDS Tough-Dock + Single USB-A for Samsung Tab A9+

Overview

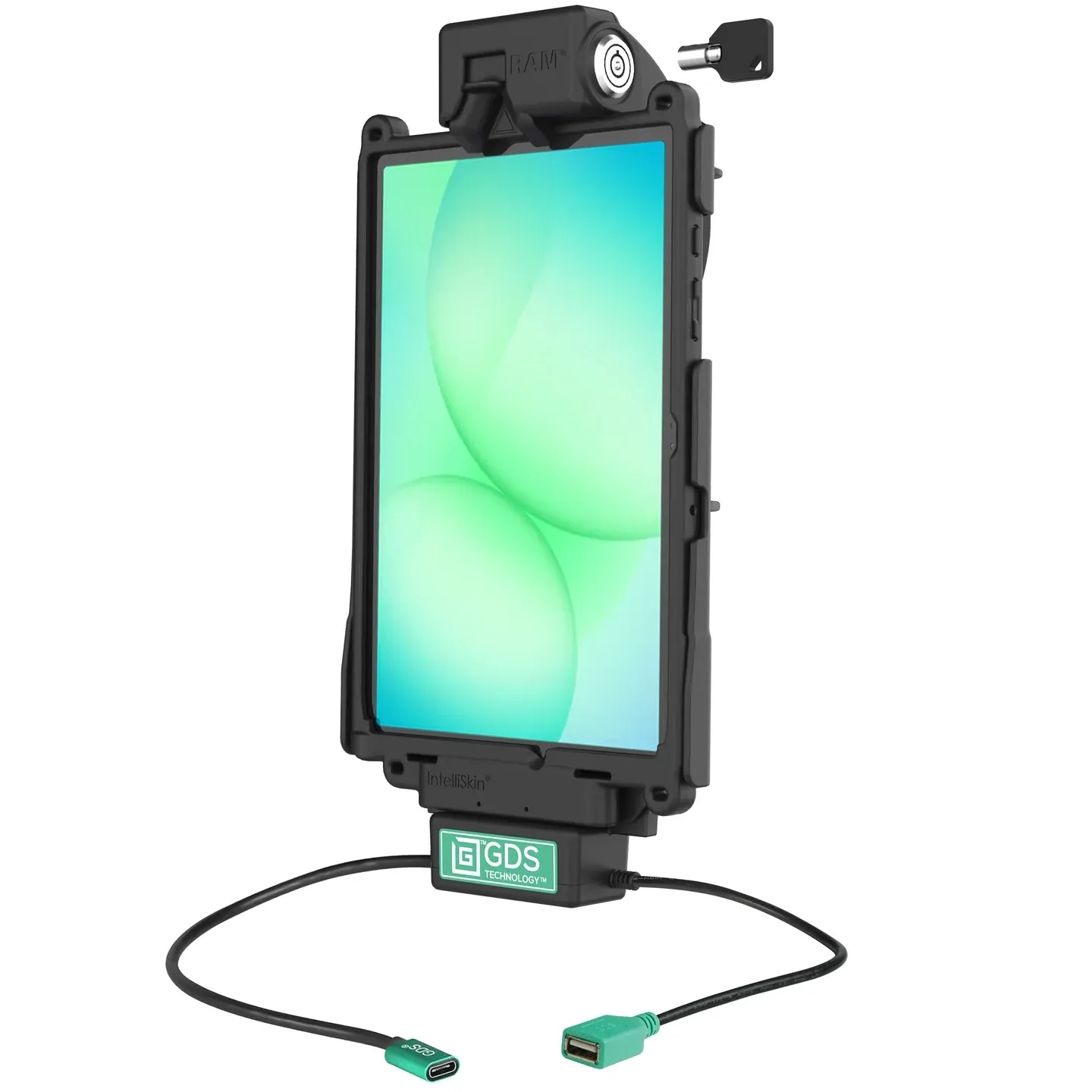

This key-locking GDS^® Tough-Dock^™ vehicle dock is designed to support the Samsung Galaxy Tab A11+ & Tab A9+ in an IntelliSkin^® Next Gen protective sleeve for your fleet. While the dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, the GDS^® Tough-Dock^™ also includes a USB Type-A connector to support a peripheral add-on such as a keyboard, printer, scanner and more. The GDS^® Tough-Dock^™ is compatible with RAM^® ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS^® Tough-Dock^™ is backed by a 3-year warranty. Always Protected. Always Connected.^®





Features

• Spring-loaded key-locking vehicle dock featuring GDS^® Technology^™ uses an integrated pogo pin connector to provide charging and connection to one additional USB peripheral
• Designed specifically for the Samsung Galaxy Tab A11+ & Tab A9+ wrapped in an IntelliSkin^® Next Gen protective sleeve
• Power delivered via USB-C connector; connect a single input device via USB-A connector
• RAM^® Mounts Compatible^™ and compatible with the GDS^® Hand-Stand^™ Hand Strap and Kickstand attachment
• Backed by a 3-year warranty

Specs

hardware included:

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) USB Type-C to Type-A Cable

hole pattern:

4-Hole AMPS: 1.181" x 1.496"

materials:

High strength composite

packaging type:

Poly Bag

output voltage:

5V - 12V @ 3A

power output:

60W Max

input connector:

USB Type-C
USB Type A for 1 Peripheral

input cable length:

215mm

output cable length:

215mm

peripheral output:

500mA

Warranty:

3 year warranty

Weight:

1.77 lb
