DJI DL PZ 17-28mm T3.0 ASPH is a full-frame DL 17-28mm zoom lens with T3.0 wide aperture, aluminum magnesium alloy body, and 520g weight.

Overview

• Calibration-Free Focusing Experience

DJI’s first cinema zoom lens DL PZ 17-28 mm T3.0 ASPH covers focal lengths from ultra-wide-angle 17 mm to wide-angle 28 mm to meet the need of professional shooting. Once mounted, the lens is ready to deliver accurate focusing and zoom without calibration.

• High Resolution From Center to Edge

Ultra-high resolution from center to edge that meets the requirement of 8K sensors for image quality. Delivers sharp imagery and outstanding optical performance.

• 0.19m Minimum Object Distance

A minimum object distance of 0.19 m can meet the needs of most close-up shots at ultra wide angles.

• 520g Aluminum Magnesium Alloy Body

The lens design using aluminum magnesium alloy effectively reduces weight to a ultra-light 520 g, while ensuring stiffness and strength.

• Built-in Servo Zoom Motor

With a servo zoom motor built in, the lens can zoom without having to mount an external focus motor. The non-detachable motor is light and portable.

• Zoom without Re-balancing

The lens tube moves within 5 mm while zooming. When using with Ronin 4D, re-balancing is not required after zooming.

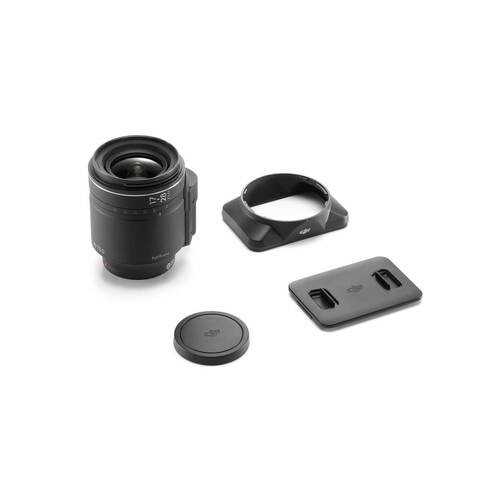

In The Box

• Lens Front Cap × 1
• Lens Hood × 1
• Lens × 1
• Lens Rear Cap × 1

Specifications

• Imager Size: Full frame (36×24 mm)
• Focal Length: 17-28 mm
• MOD (From Object to Image Plane):
• 17 mm: 0.19 m
• 28 mm: 0.26 m
• Aperture Range: T3.0 to T22
• Filter Diameter: Φ 67 mm
• Lens Mount: DL mount
• Weight (lens hood included): Approx. 520 g
• Operating Temperature: -10° to 55° C (14° to 131° F)

Compatibility

DJI Ronin 4D-6K

DJI Ronin 4D-8K
