RAM Track Ball Quick Release Base – C Size
$52.00
Out of stock
Available on backorderMounting base: slides into a RAM track. Has a C size (1.5") ball; add a C size arm and holder to complete the mount.
RAM ball size guide
The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.
| Size | Ball diameter | Holds up to | Best for |
|---|---|---|---|
| A | 9/16" (14 mm) | 0.45 kg | Small cameras, action cams, remotes |
| B | 1" (25 mm) | 0.9 kg | Phones, GPS units, small tablets. The most common size. |
| C | 1.5" (38 mm) | 1.8 kg | Tablets, small monitors, rugged devices |
| D | 2.25" (57 mm) | 2.7 kg | Large displays and laptops |
| E | 3.38" (86 mm) | 6.8 kg | Heavy monitors and equipment |
Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.
Need an arm and holder for this? Complete your mount ↓
Complete your mount
A RAM mount is three parts: a base that attaches to your vehicle or surface, a socket arm that connects the balls, and a holder for your device. All C size parts below fit together. Tick one of each, then add them in one go.
Base
Arm
Nothing in stock for that choice in C size. Try another option.
Holder
Not listed.
Any tablet 64–146 mm wide also fits.
Not listed.
Any phone 48–83 mm wide also fits.
Nothing in stock for that choice in C size. Try another option.
Overview

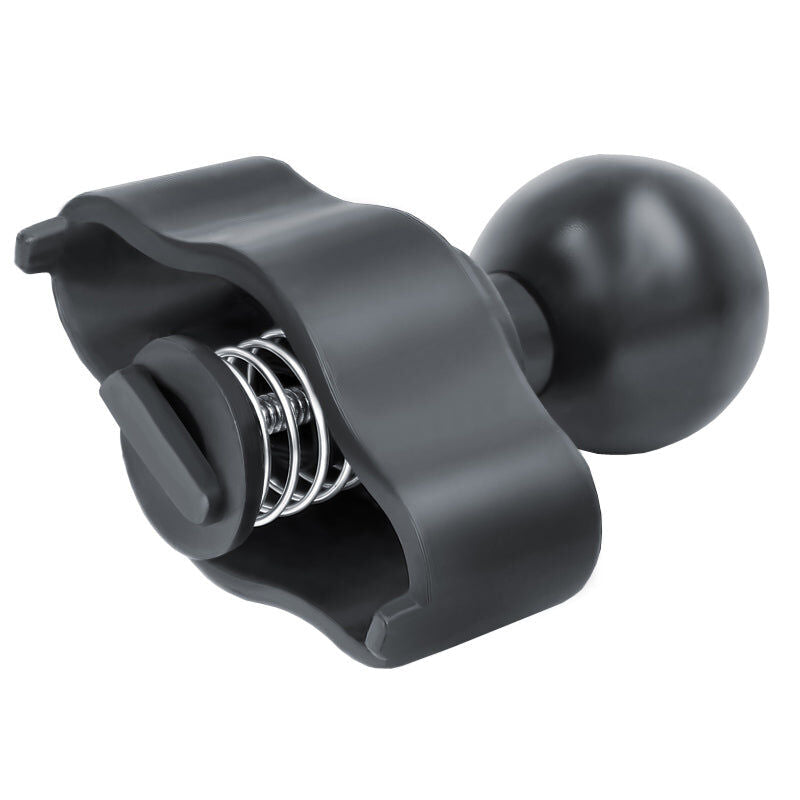

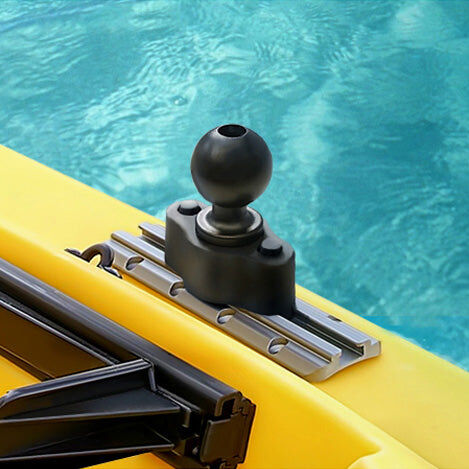

The RAM® Track Ball™ Quick Release Base - C Size (RAP-383U) creates a reliable mounting point designed to universally fit a wide range of common and proprietary track systems, including YakAttack GearTrac, Scotty Slide Track, and Harmony SlideTrax. With a simple twist of the ball, you can instantly loosen or tighten the base, making it easy to slide along the track and quickly reposition your fishing accessories. Featuring a C size 1.5" ball, it pairs seamlessly with any RAM® C size arm and device holder. For anglers, it’s an ideal foundation for mounting fishing rods, action cameras, fish finders, and transducer arms.
Features
- Quick release and installation
- Easily adjust adapter along track
- Made of high-strength composite for durability and reliability in the most demanding environments
- Compatible with C size components, including RAM-ROD™ holders
- Backed by a lifetime warranty
T Bolt Dimensions
.248" x .93"
Ball Size
C Size (1.5")
Weight Capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Materials
High strength composite
Packaging Type
Poly Bag
Weight
0.25 lb
Additional Information
Not recommended for top loading gear tracks.
