RAM Double Socket Swivel & Ratchet Arm – C Size

Name: RAM Double Socket Swivel & Ratchet Arm - C Size
Brand: RAM Mounts
SKU: RAP-200-2U
Availability: InStock

$75.00

In stock

Aluminium double socket arm for C size (1.5") balls. Connects a C size base to a C size holder.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

Size	Ball diameter	Holds up to	Best for
A	9/16" (14 mm)	0.45 kg	Small cameras, action cams, remotes
B	1" (25 mm)	0.9 kg	Phones, GPS units, small tablets. The most common size.
C	1.5" (38 mm)	1.8 kg	Tablets, small monitors, rugged devices
D	2.25" (57 mm)	2.7 kg	Large displays and laptops
E	3.38" (86 mm)	6.8 kg	Heavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Need a base and holder for this? Complete your mount ↓

SKU RAP-200-2U Category General Mounts

Overview

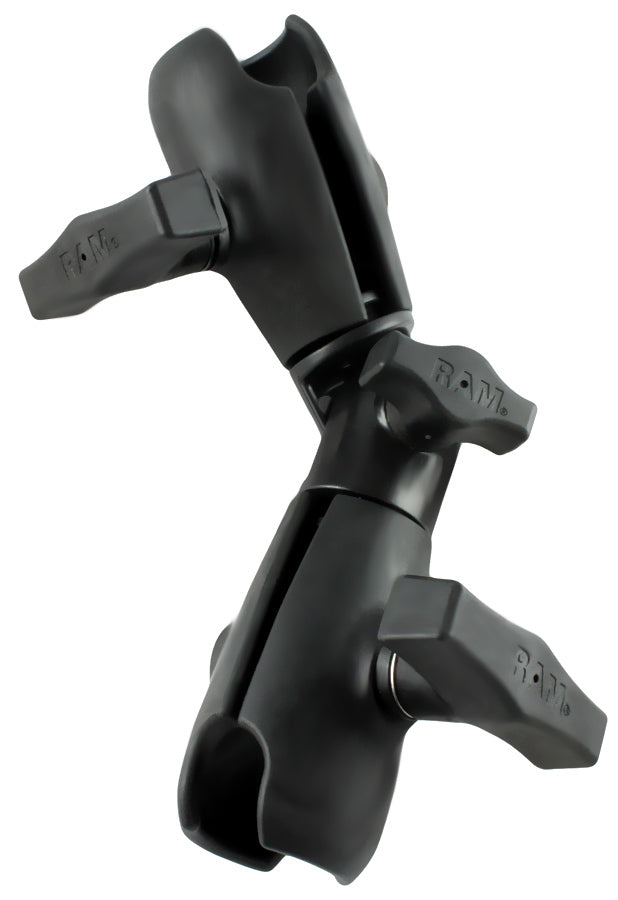

The RAP-200-2U consists of double 1.5" diameter open ball sockets with a 360° rotation point at the center and a connecting swivel joint that rotates forward and back 180°. The rubber ball and socket at either end, and a central pivot point provides unsurpassed adjustability. The RAM ball sockets maximize ball coverage for optimal fit.

Features

Double socket swivel and ratchet arm features 360-degree center rotation and 180-degree swivel joint with an overall length of 8.2" and a socket-to-socket length of 7.16"
Attaches to any C size RAM® ball component, including mounting bases and device holders
Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Backed by a lifetime warranty

Specs
