RAM Single Socket Arm with 1/2" NPT Threaded Hole - Image 1
RAM Single Socket Arm with 1/2" NPT Threaded Hole - Image 2
RAM Single Socket Arm with 1/2" NPT Threaded Hole
RAM Single Socket Arm with 1/2" NPT Threaded Hole - Image 2

RAM Single Socket Arm with 1/2″ NPT Threaded Hole

RAM Mounts

$100.00

In stock

Aluminium socket arm for C size (1.5") balls. Connects a C size base to a C size holder.

RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Need a base and holder for this? Complete your mount ↓

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount

Complete your mount

A RAM mount is three parts: a base that attaches to your vehicle or surface, a socket arm that connects the balls, and a holder for your device. All C size parts below fit together. Tick one of each, then add them in one go.

Base

Arm

Holder

SKU RAM-200-1U Category
Overview

Overview

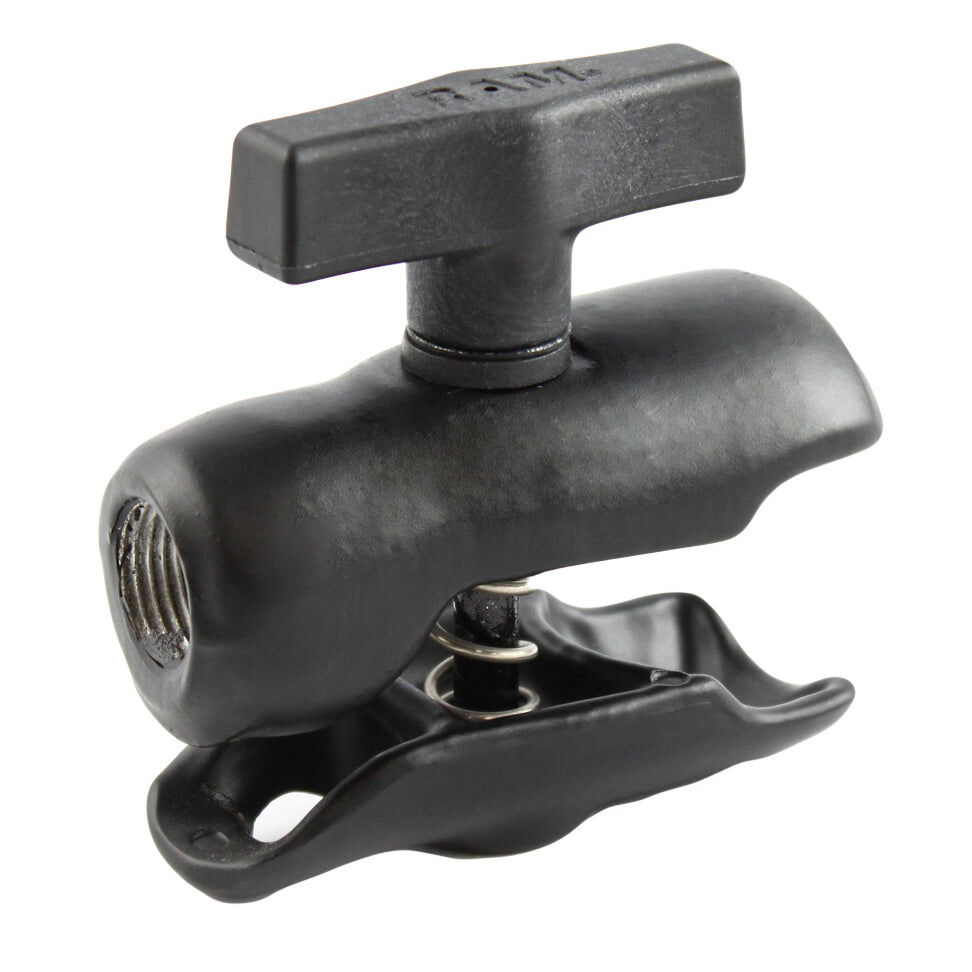

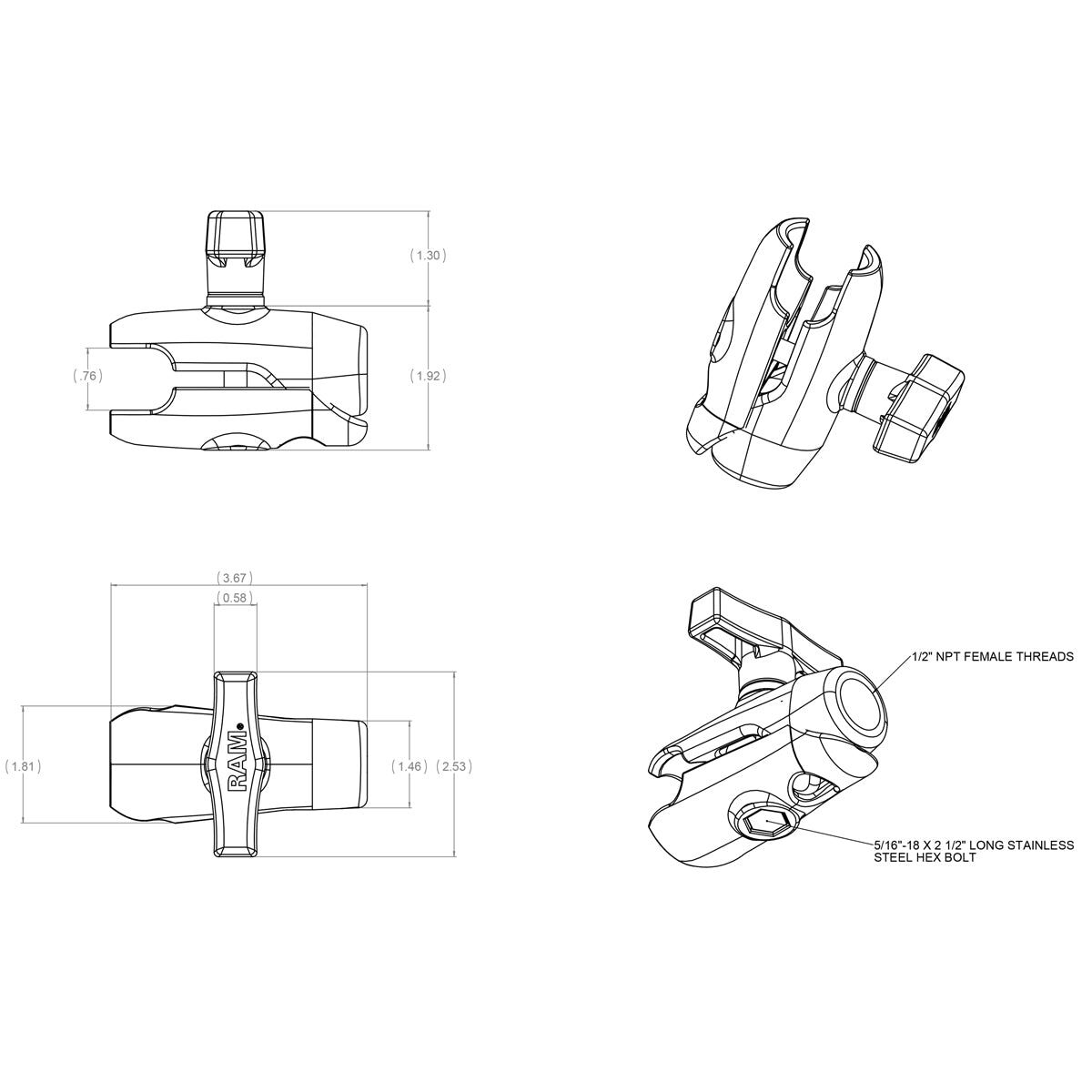

The RAM-200-1U includes a single socket that will accommodate 1.5" balls and a 1/2" NPT Female thread. This part will connect to 1/2" NPT Male threads, including RAM-PA82XX rigid arms.

Specs

Ball Size

C Size (1.5")

Weight Capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Weight

0.56 lb

Resources
