RAM Double Socket Arm with RAM Pin-Lock 5-Pin Security Knob – C Size

RAM Mounts

$68.00

In stock

Short aluminium double socket arm for C size (1.5") balls. Connects a C size base to a C size holder.

Arm lengthShortMedium
RAM ball size guide

The letter in a RAM part number is the ball size. Every part in a mount must use the same ball size. C size parts carry no letter, so RAM-201U is a C size arm and RAM-B-201U is the B size version.

SizeBall diameterHolds up toBest for
A9/16" (14 mm)0.45 kgSmall cameras, action cams, remotes
B1" (25 mm)0.9 kgPhones, GPS units, small tablets. The most common size.
C1.5" (38 mm)1.8 kgTablets, small monitors, rugged devices
D2.25" (57 mm)2.7 kgLarge displays and laptops
E3.38" (86 mm)6.8 kgHeavy monitors and equipment

Arm length sets the reach. Short keeps the device close and rigid, Medium suits most installs, Long is for extra reach. If in doubt, choose Medium.

Need a base and holder for this? Complete your mount ↓

Not sure this fits your setup?Tell us your device and where you are mounting it. The RAM® Mount Builder shows every mount that fits.Find my mount

Complete your mount

A RAM mount is three parts: a base that attaches to your vehicle or surface, a socket arm that connects the balls, and a holder for your device. All C size parts below fit together. Tick one of each, then add them in one go.

Base

Arm

Holder

SKU RAM-201-BS-KEY5U Categories ,
Overview

Overview

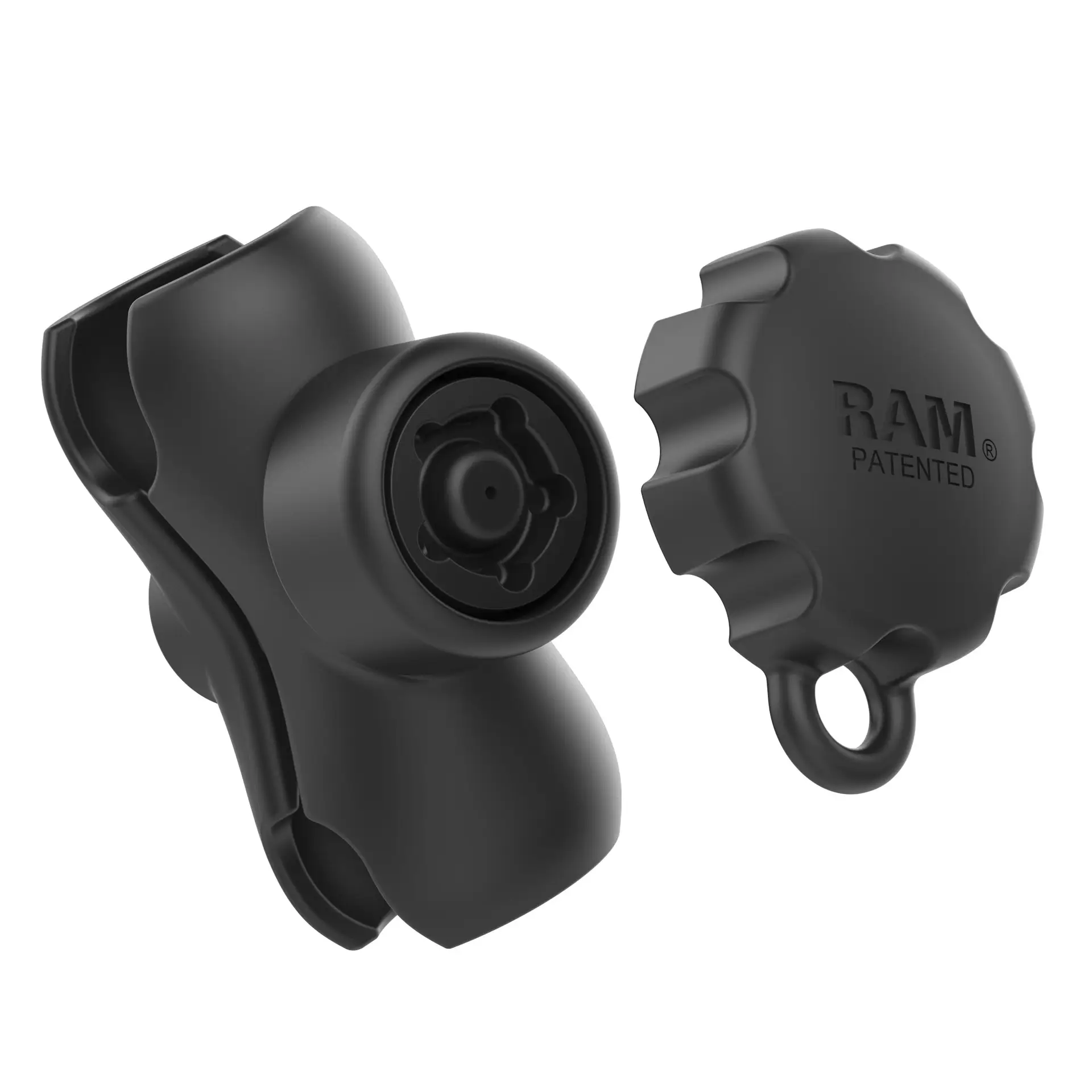

This C size short double socket arm includes a RAM® Pin-Lock™ locking knob for theft deterrence. The socket arm consists of a 1.5" diameter socket size compatible with C size ball bases and adapters. RAM® Pin-Lock™ security solutions are designed to withstand the harshest environments and keep devices locked to the mounting area; perfect for tablet mounts, fish finder mounts and other larger devices. With an emphasis on aesthetics and function, RAM® security nuts & knobs are low profile and only add a small amount of additional bulk to your system when compared to the standard knob included. At a fraction of the cost of traditional key locking knobs, the additional peace of mind and tamper resistance comes at a very affordable price.

Features

  • Short RAM® double socket arm provides an ideal overall length of 3.56" and a socket-to-socket length of 2.5"; includes RAM® Pin-Lock™ security knob and key
  • Attaches to any C size RAM® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Specs

Hardware Included

(1) Pin-Lock Security Key

Product Dimensions

Overall Length: 3.56"

Socket To Socket Length

2.5"

Ball Size

C Size (1.5")

Weight Capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs

Materials

Marine-grade aluminum

Packaging Type

Poly Bag

Weight

0.63 lb
